Right LED rear combination lamp with number plate light 4 functions HOR 76 LZD 2003 Horpol 12/24V

Right LED rear combination lamp HOR 76 with number plate light LZD 2003 – Horpol

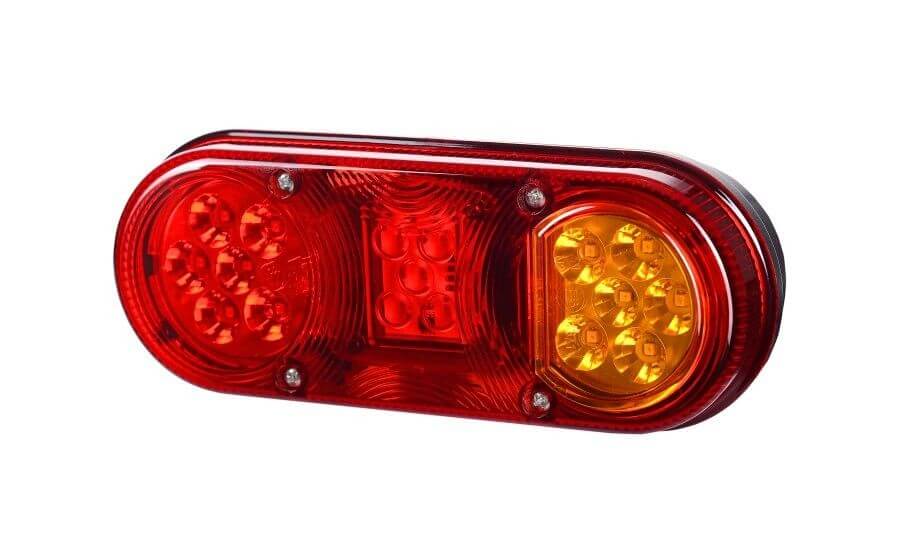

LED rear combination lamp Horpol LZD 2003 from the HOR 76 group, for the right side of the vehicle, supply voltage 12/24 V.

It combines four functions: position light, direction indicator, stop light and number plate light. It uses 21 LEDs.

Replaceable lenses and LED modules make servicing easier. The housing has IP68 ingress protection and the lamp has E9 approval.

Light functions

• Rear position light: 12/24 V (0.6/1.5 W)
• Rear direction indicator: 12/24 V (1.7 W)
• Stop light: 12/24 V (1.0/2.4 W)
• Number plate light: 12/24 V (0.5/1.2 W)

Technical data

• Part number: LZD 2003
• Lamp group: HOR 76
• Supply voltage: 12/24 V
• Number of LEDs: 21
• Ingress protection: IP68
• Approval: E9 11862/11863

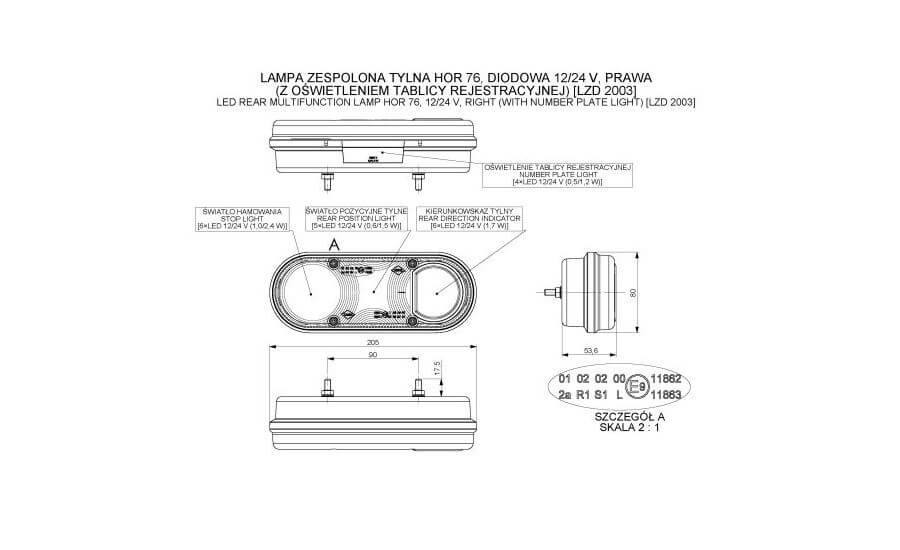

Dimensions and fit

• Overall length: 205 mm
• Height: 80 mm
• Depth: 53.6 mm
• Mounting hole spacing: 90 mm

The lamp is available at zemot.com.pl.
