Left LED rear combination lamp with number plate light 4 functions LZD 2004 Horpol 12/24V

Left LED rear combination lamp 12/24 V LZD 2004 – Horpol HOR 76

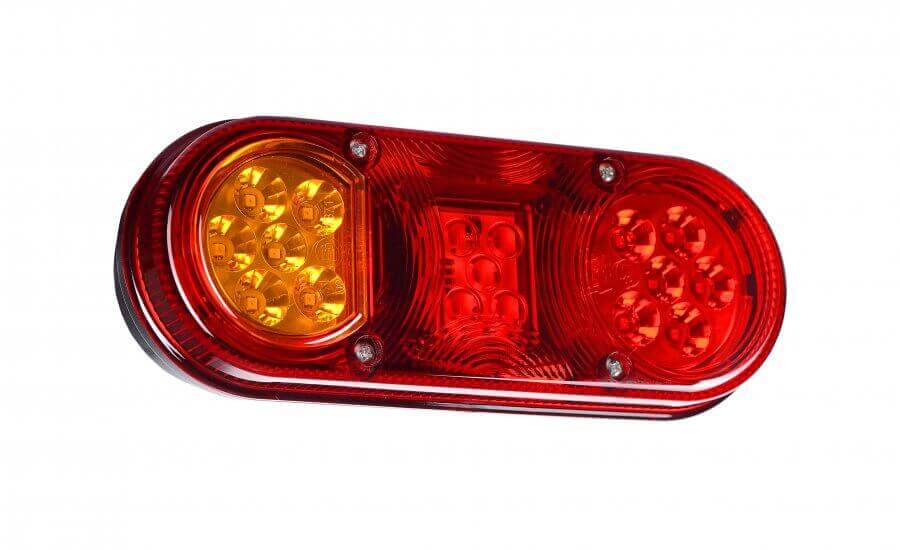

Fully LED rear combination lamp Horpol LZD 2004 from the HOR 76 series, left version, supply voltage 12/24 V.

It combines position light, STOP light, direction indicator and number plate light. It uses 21 LEDs.

The replaceable lens and replaceable LED modules allow the lamp to be repaired after mechanical damage, without replacing the whole lamp. Spare parts – lenses and modules – are available separately.

Light functions

• Rear position light – power 0.6/1.5 W
• STOP light – power 1.0/2.4 W
• Direction indicator – power 1.7 W
• Number plate light (left side) – power 0.5/1.2 W

Technical data

• Part number: LZD 2004
• Lamp group: HOR 76
• Supply voltage: 12/24 V
• Number of LEDs: 21
• Ingress protection: IP68
• Cable: length approx. 2 m
• Mounting side: left
• Design: modular – replaceable lens and replaceable LED modules

Dimensions and fit

• Overall dimensions: 205 x 80 x 53.6 mm
• Mounting hole spacing: 90 mm (M6 bolts)

You can buy the LZD 2004 lamp at zemot.com.pl together with its right-hand counterpart LZD 2003, and in case of damage – separate lenses and LED modules.
