Combination lamp set MAVIC right with reflector and marker lamp LZD 3052/H101/AMP Horpol 12/24V

MAVIC combination lamp set with reflector, AMP 7PIN socket and marker lamp on stalk, right LZD 3052/H101/AMP – Horpol HOR 108A/HOR 101

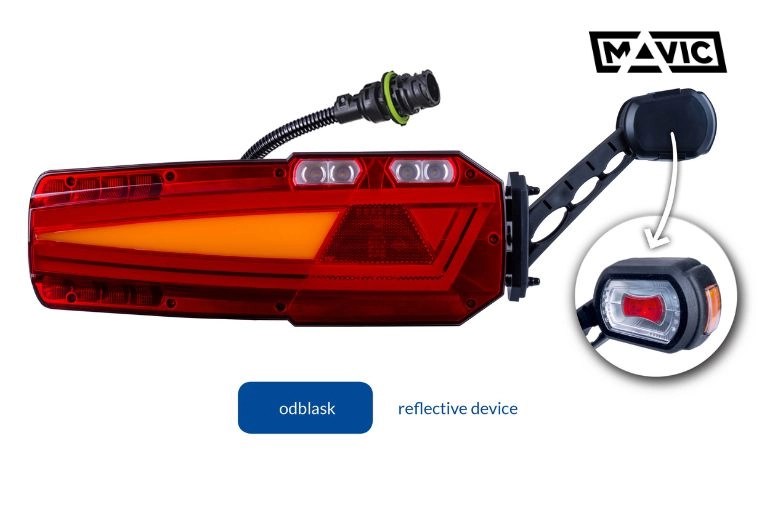

An AMP 7PIN socket on a cable in a protective conduit, a reflector and a three-function marker lamp on a stalk – LZD 3052/H101/AMP is a MAVIC series set ready to connect to the electrical system of vans, tractor units, tow trucks and larger special-purpose and agricultural vehicles. Supply 12/24 V.

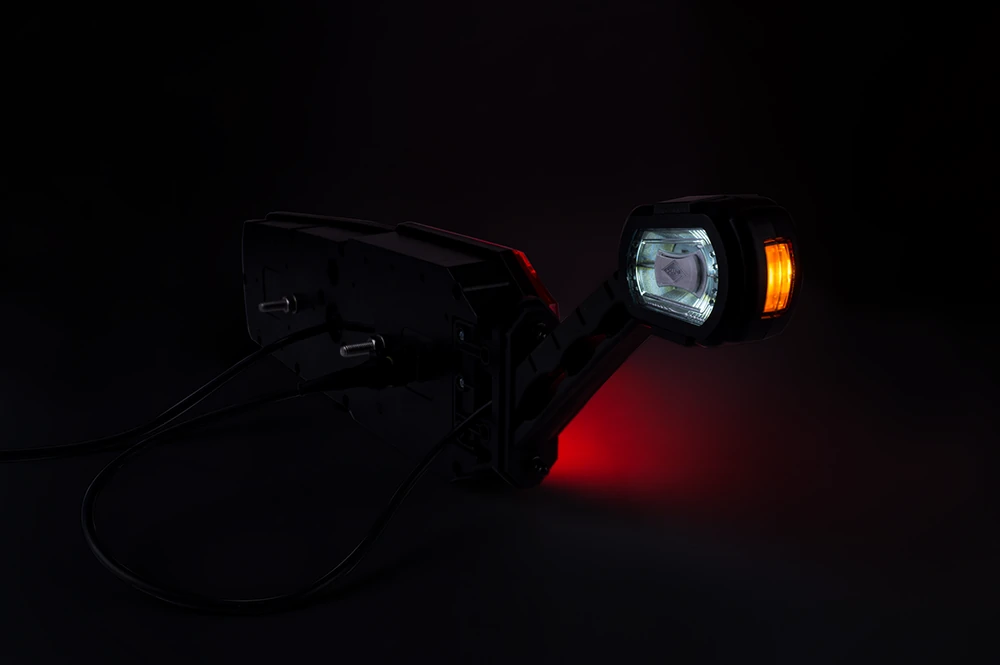

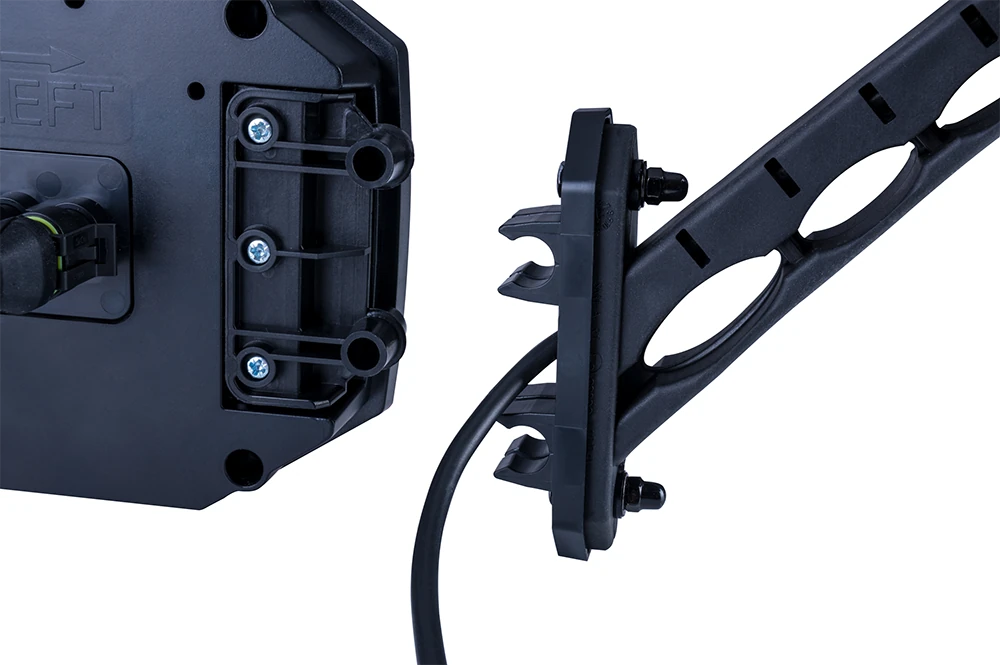

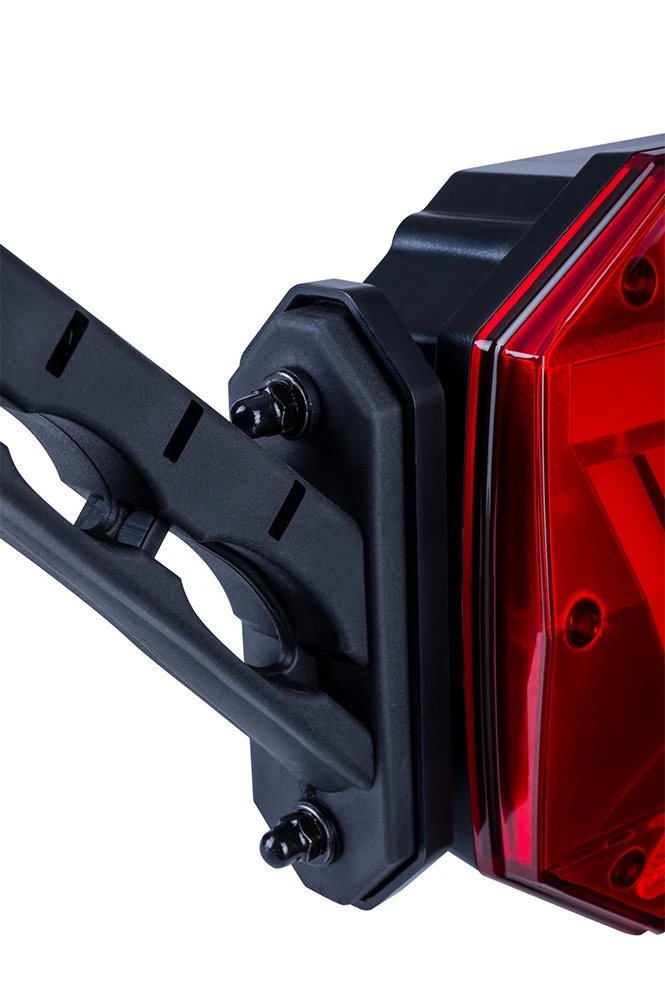

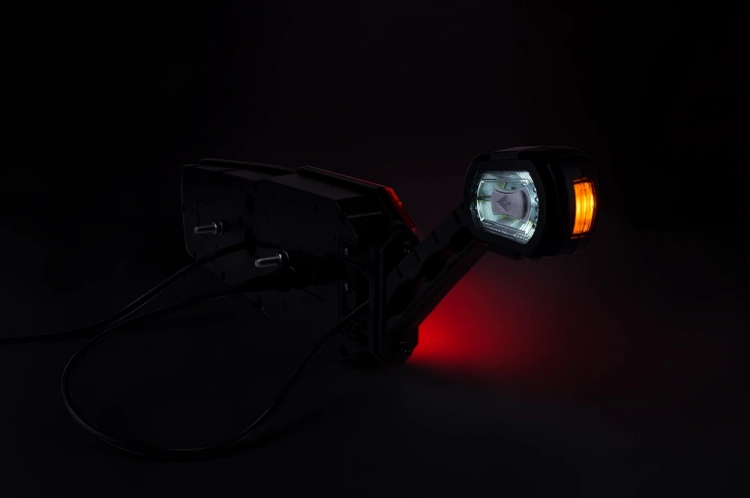

The combination lamp combines five functions, of which the position light, stop light and direction indicator use NEON technology. The marker lamp on the stalk shines forwards, sideways and rearwards, and a quick Click&Ride connector joins it to the combination lamp: on impact with an obstacle it detaches without damaging the combination lamp, and you can replace the marker lamp alone without replacing the whole set. A double Superseal socket in the housing lets you connect the marker lamp and the license plate light or a harness supplying marker lamps.

The set has 98 LEDs, IP68 ingress protection and operates from −30°C to +50°C. MAVIC lenses have a coating resistant to scratches and mechanical damage. The HOR 108A and HOR 101 lamp groups hold lighting approval and electromagnetic compatibility (EMC) approval, and the set includes all parts needed to mount the marker lamp to the combination lamp.

Light functions

• NEON rear position light: 2/4 W (12/24 V)
• NEON stop light: 10/10 W
• NEON rear direction indicator: 4/13 W
• Reversing light: 2/4.5 W
• Rear fog light: 4/4 W
• Reflector
• Marker lamp on stalk: front, side and rear marker light, 0.5/1 W

Technical data

• Part number: LZD 3052/H101/AMP
• Series / manufacturer code: MAVIC, HOR 108A and HOR 101
• Supply voltage: 12/24 V
• Number of LEDs: 98
• Ingress protection: IP68
• Operating temperature range: from −30°C to +50°C
• Cable: 6x0.5 mm², length 0.3 m, in protective conduit
• Connector: AMP 7PIN socket (round); double Superseal socket in the housing; marker lamp on Click&Ride connector
• Mounting side: right
• Approval: lighting – UN R148 and R150 (HOR 108A combination lamp), UN R7 and R91 (HOR 101 marker lamp); electromagnetic compatibility (EMC)

Dimensions and fit

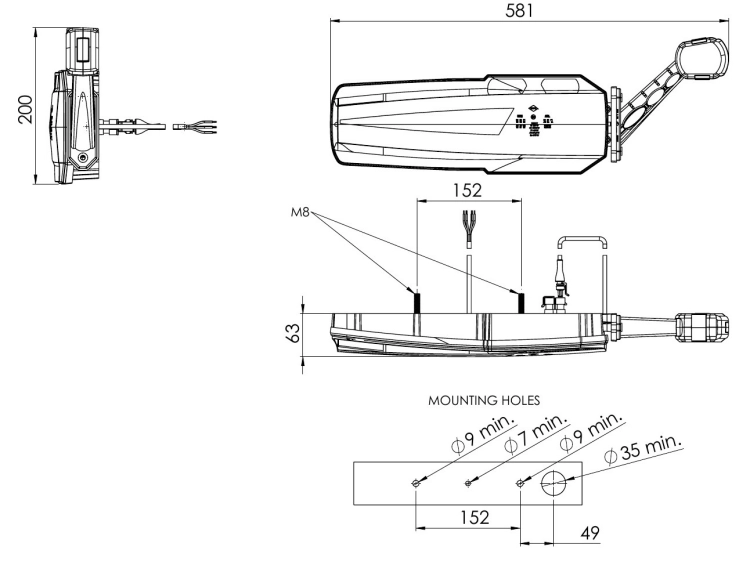

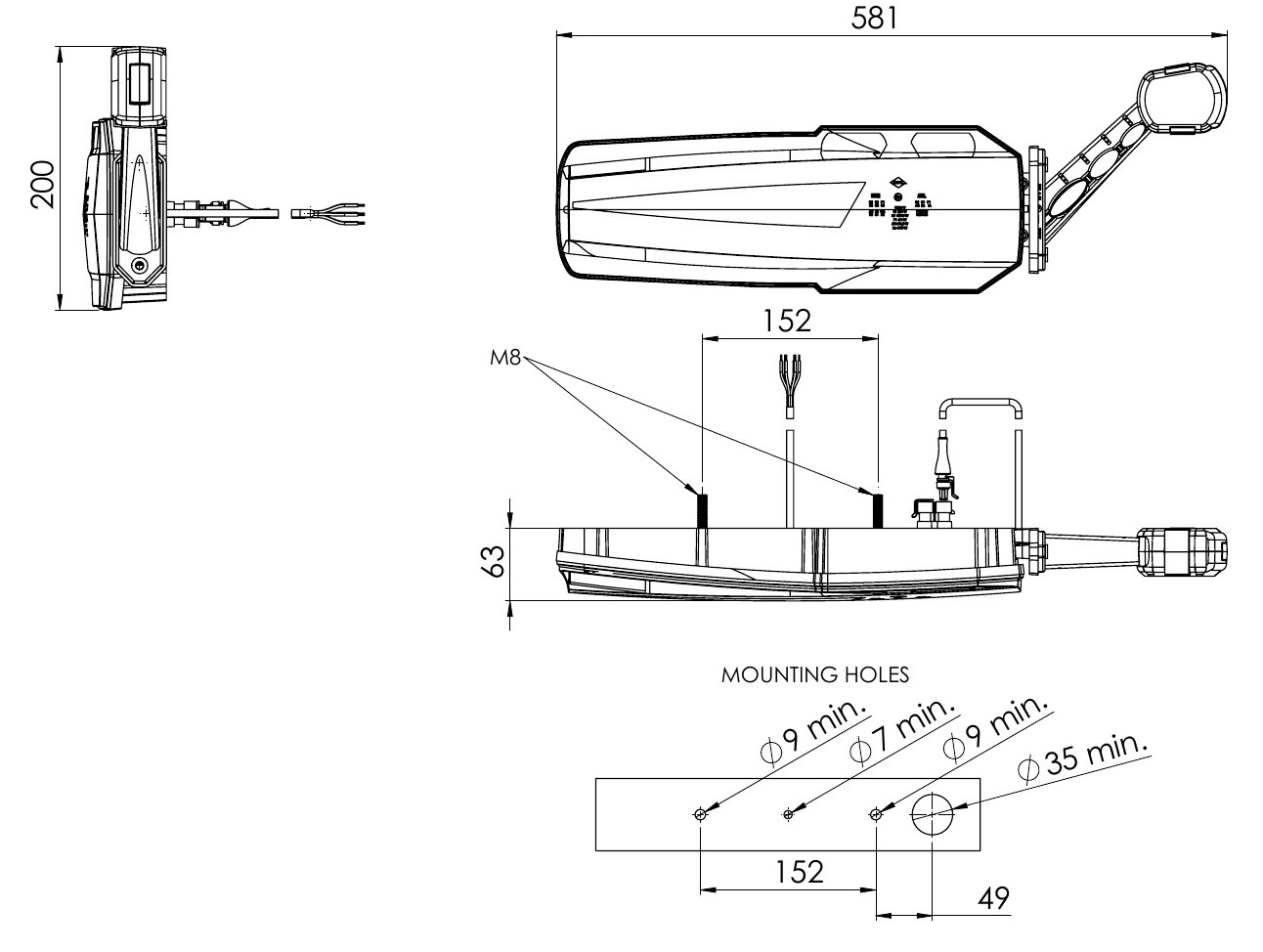

• Overall dimensions: 581 x 200 x 63 mm (set length incl. stalk x height x combination lamp depth)
• Mounting hole spacing: 152 mm
• Mounting bolts: 2 x M8
• Holes in the bodywork: 2 x Ø9 mm min. for bolts, Ø7 mm min. in the center, Ø35 mm min. for cables (49 mm from the mounting hole)
• Application: vans, tractor units, tow trucks, special-purpose and agricultural vehicles

The matching pair for this set is the left LZD 3051/H101/AMP. The same set without the AMP socket is LZD 3052/H101, and the version with a reflective triangle and AMP socket is LZD 3050/H101/AMP – all are available at zemot.com.pl.
