Combination lamp set MAVIC left with reflector and marker lamp LZD 3051/H101/AMP Horpol 12/24V

MAVIC combination lamp set with reflector, AMP 7PIN socket and marker lamp on stalk, left LZD 3051/H101/AMP – Horpol HOR 108A/HOR 101

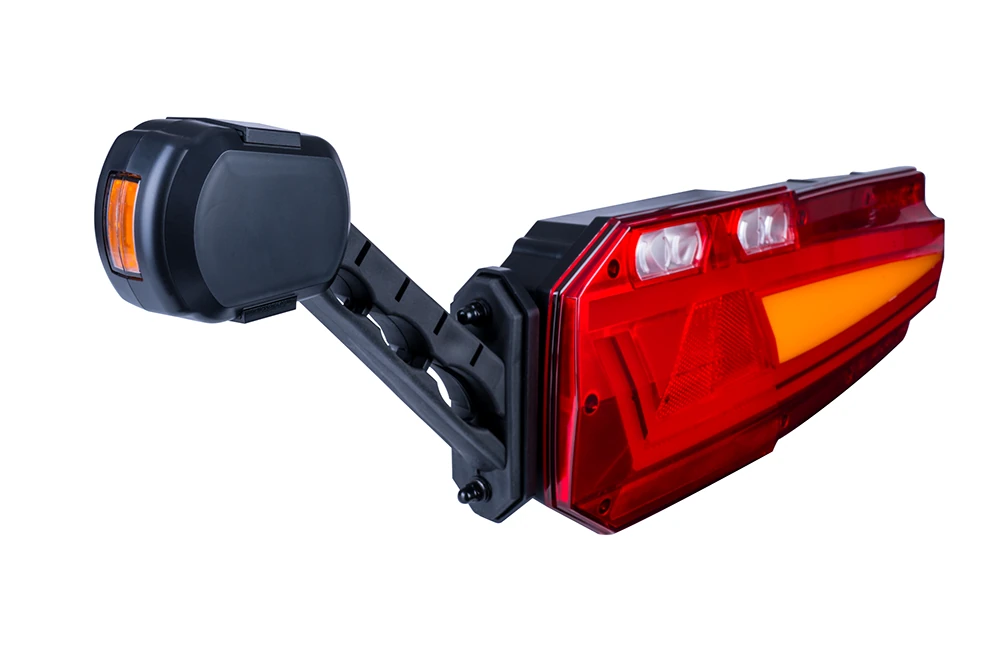

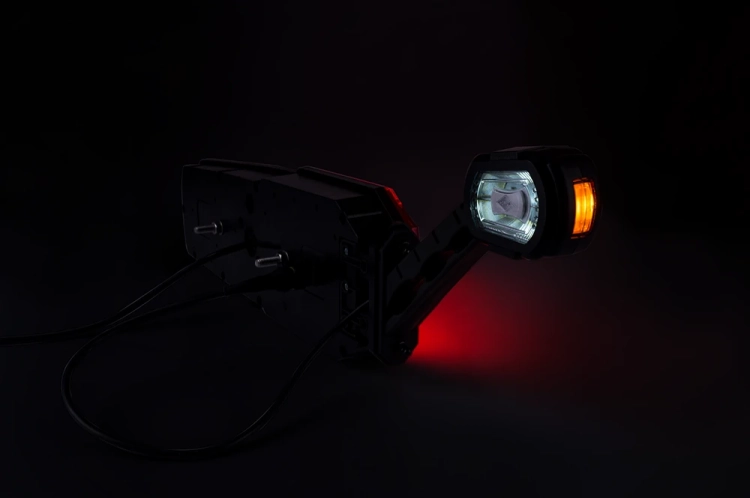

A MAVIC combination lamp with reflector, a marker lamp on a stalk and a cable in a protective conduit ending in an AMP 7PIN socket – LZD 3051/H101/AMP is a single set with a ready-made connector for the vehicle wiring. It is designed for vans, tractor units, tow trucks and larger special-purpose and agricultural vehicles and runs on 12/24 V.

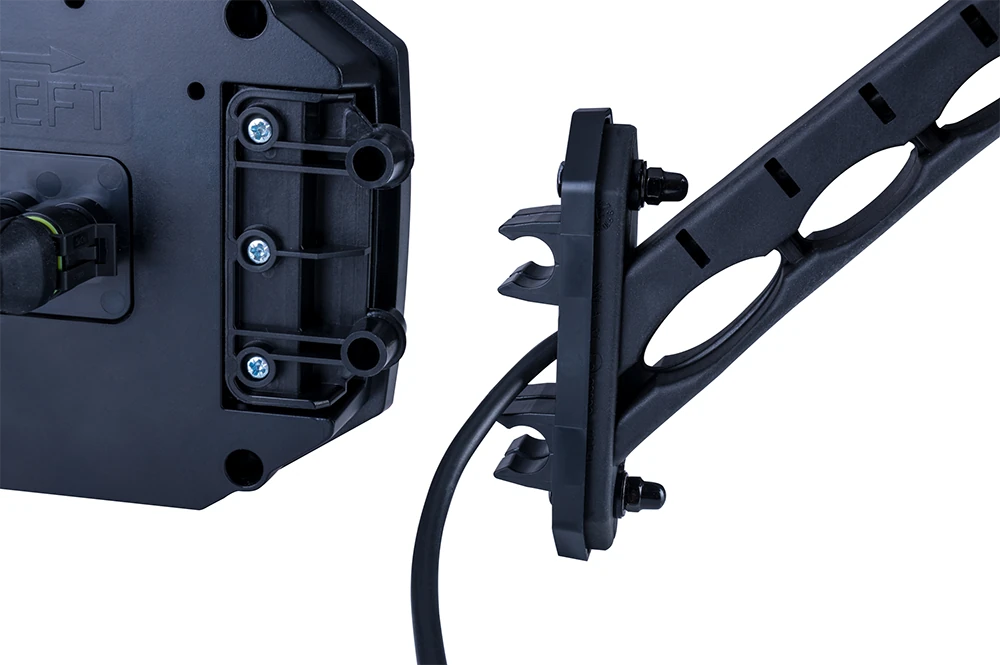

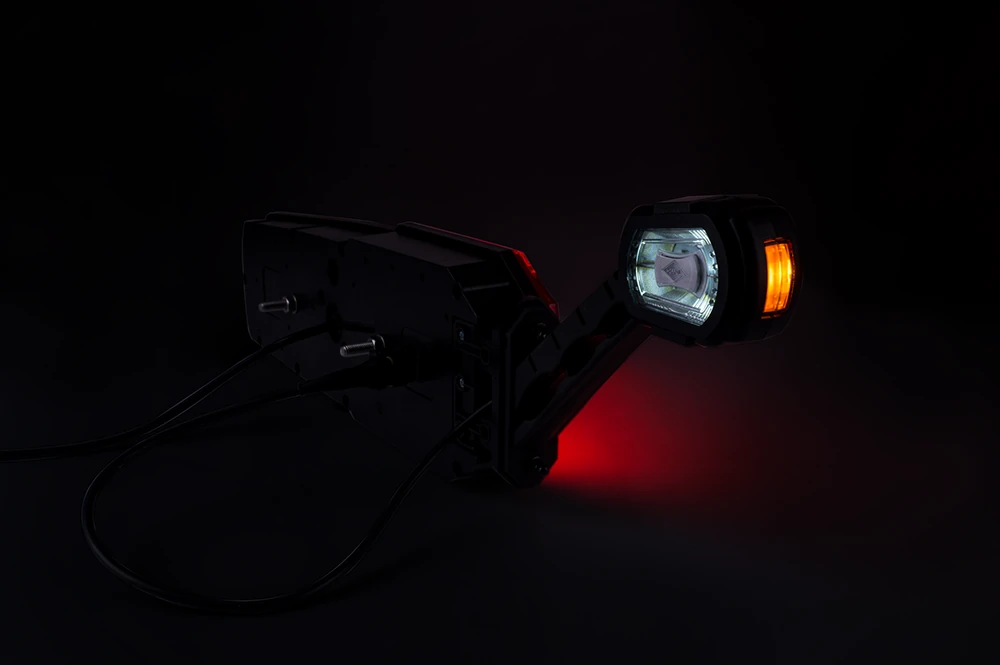

Three functions of the combination lamp – position light, stop light and direction indicator – use NEON technology, complemented by a reversing light and a rear fog light. The stalk with the marker lamp (front, side and rear light) plugs into the housing via a Click&Ride connector, which disconnects on impact with an obstacle without harming the combination lamp; a damaged marker lamp is replaced separately. The double Superseal socket in the housing lets you connect the marker lamp and the license plate light or a harness supplying marker lamps.

The housing is rated IP68, the operating temperature range is −30°C to +50°C, and the whole set lights up with 98 LEDs. MAVIC lenses carry a coating resistant to scratches and mechanical damage. The HOR 108A and HOR 101 lamp groups have lighting approval and electromagnetic compatibility (EMC) approval, and the set contains all parts for mounting the marker lamp to the combination lamp.

Light functions

• NEON rear position light: 2/4 W (12/24 V)
• NEON stop light: 10/10 W
• NEON rear direction indicator: 4/13 W
• Reversing light: 2/4.5 W
• Rear fog light: 4/4 W

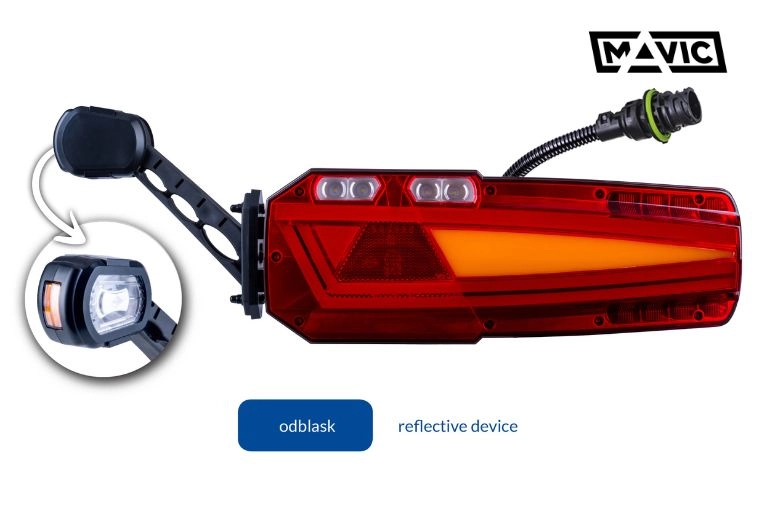

• Reflector
• Marker lamp on stalk: front, side and rear marker light, 0.5/1 W

Technical data

• Part number: LZD 3051/H101/AMP
• Series / manufacturer code: MAVIC, HOR 108A and HOR 101
• Supply voltage: 12/24 V
• Number of LEDs: 98
• Ingress protection: IP68
• Operating temperature range: from −30°C to +50°C
• Cable: 6x0.5 mm², length 0.3 m, in protective conduit
• Connector: AMP 7PIN socket (round); double Superseal socket in the housing; marker lamp on Click&Ride connector
• Mounting side: left
• Approval: lighting – UN R148 and R150 (HOR 108A combination lamp), UN R7 and R91 (HOR 101 marker lamp); electromagnetic compatibility (EMC)

Dimensions and fit

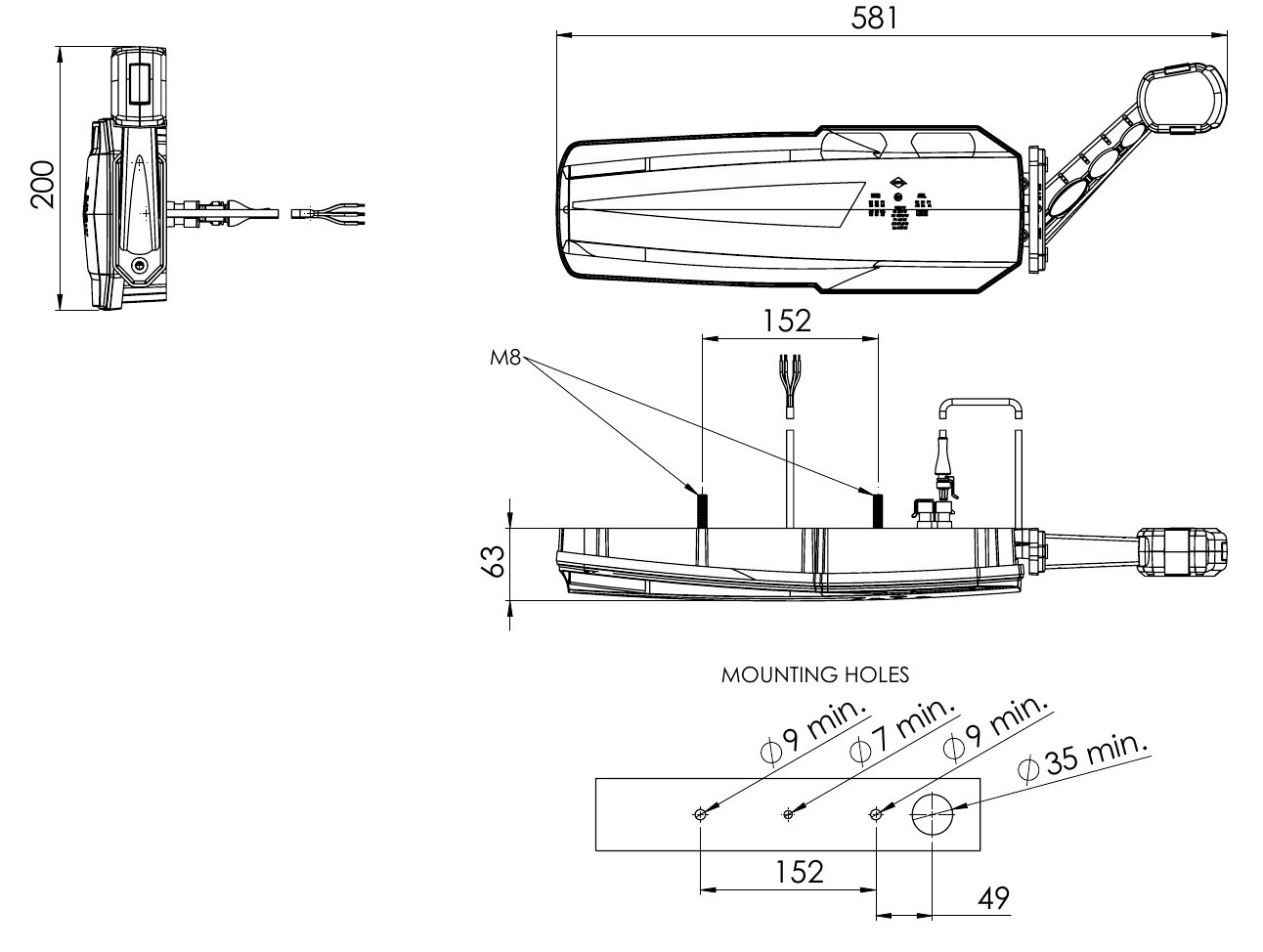

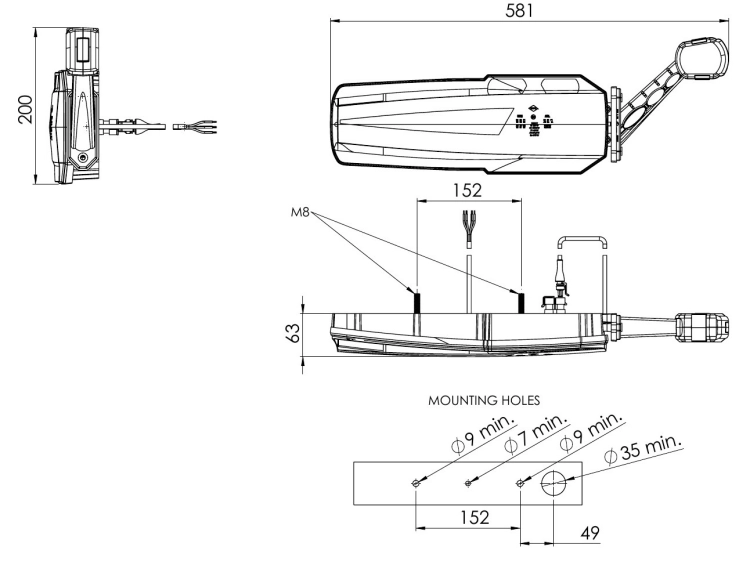

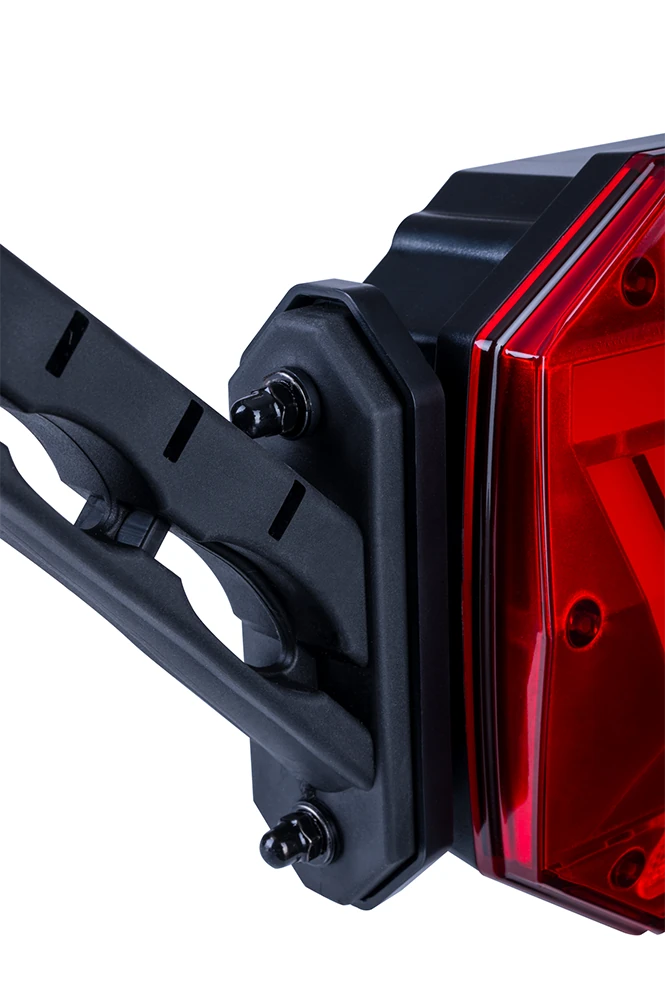

• Overall dimensions: 581 x 200 x 63 mm (set length incl. stalk x height x combination lamp depth)
• Mounting hole spacing: 152 mm
• Mounting bolts: 2 x M8
• Holes in the bodywork: 2 x Ø9 mm min. for bolts, Ø7 mm min. in the center, Ø35 mm min. for cables (49 mm from the mounting hole)
• Application: vans, tractor units, tow trucks, special-purpose and agricultural vehicles

The right-hand version of this set is LZD 3052/H101/AMP. Without the AMP socket the set is available as LZD 3051/H101, and with a reflective triangle and AMP socket as LZD 3049/H101/AMP; all are offered at zemot.com.pl.
